Trailer Door Ramps - Aluminum
Item #934


Choose Options before Adding to Cart
Type: Ramps and Loading
Vendor: Pit Products

Description:

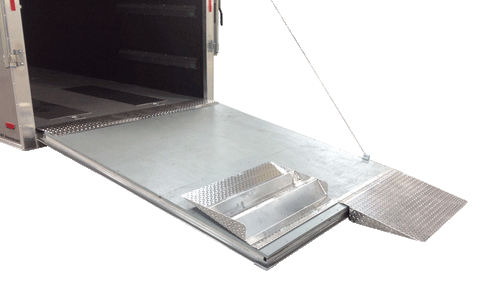

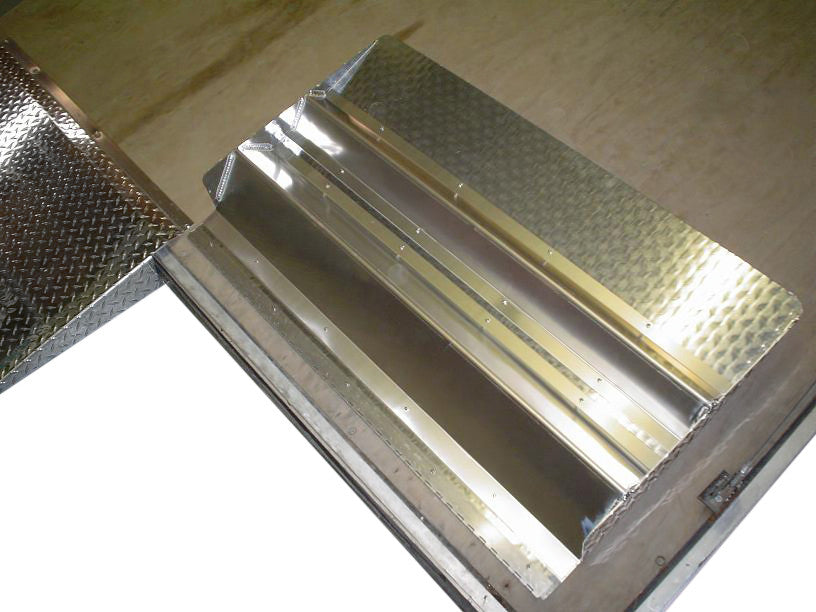

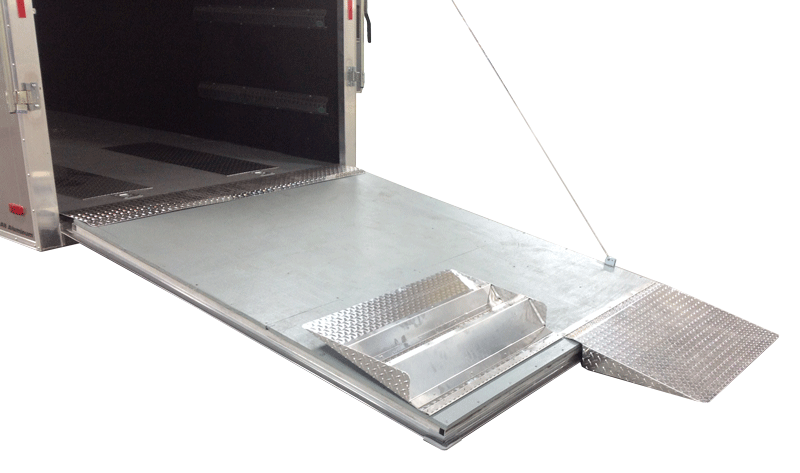

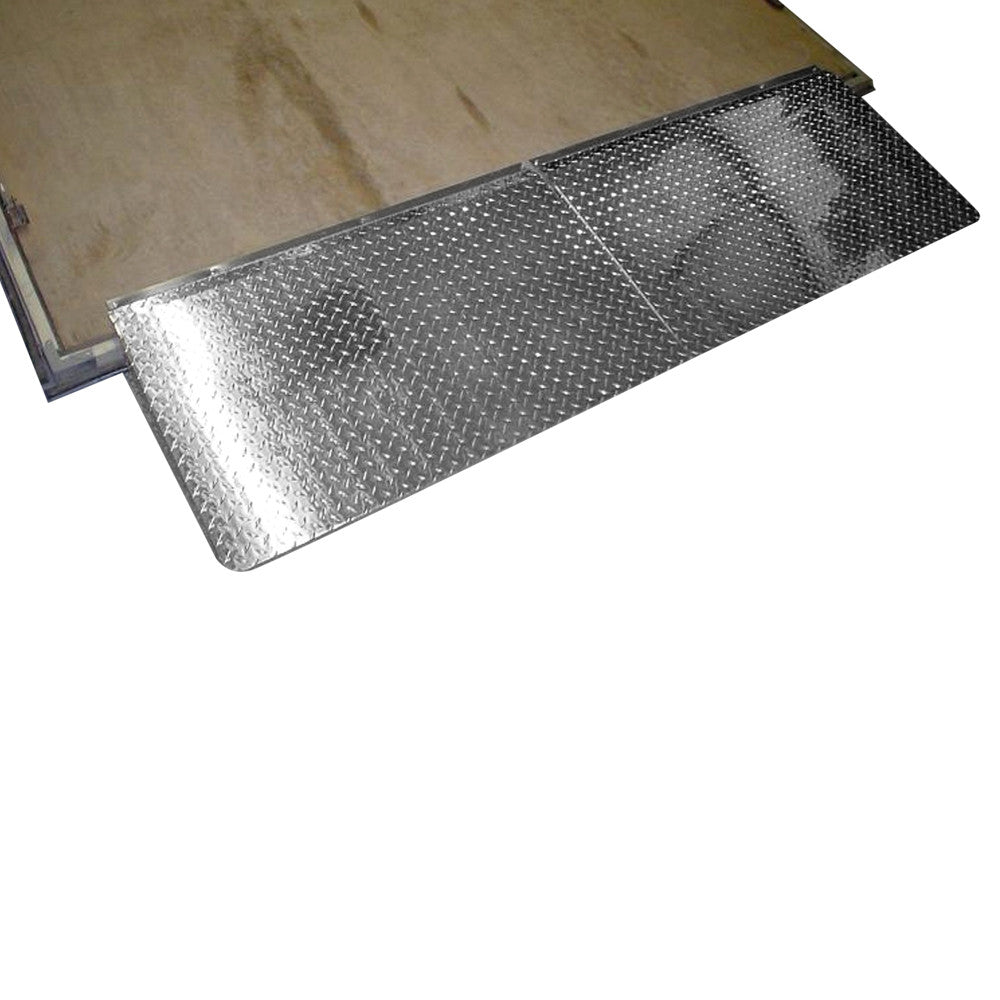

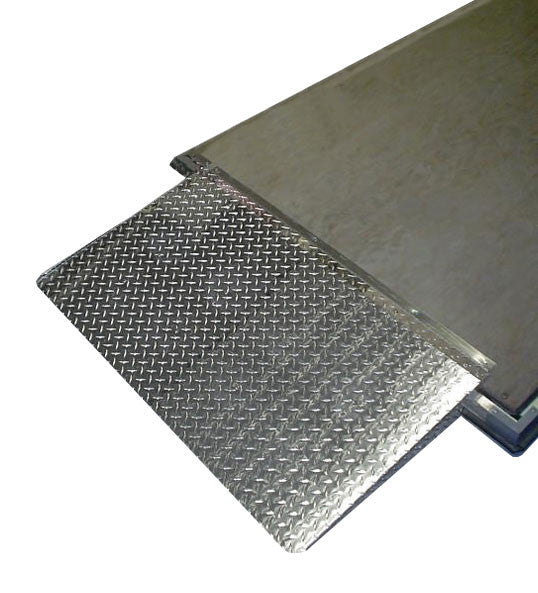

These trailer door ramp extensions are a great replacement for your stock trailer door flap. The trailer door ramp extensions are sold as a set. HEAVY DUTY material, and HEAVY DUTY bracing. Great for all types of cars, bikes, lawn equipment, pit carts and golf carts. Folds over when in transit, just like a stock door flap. Also available in singles (1), choose the appropriate option from the list.

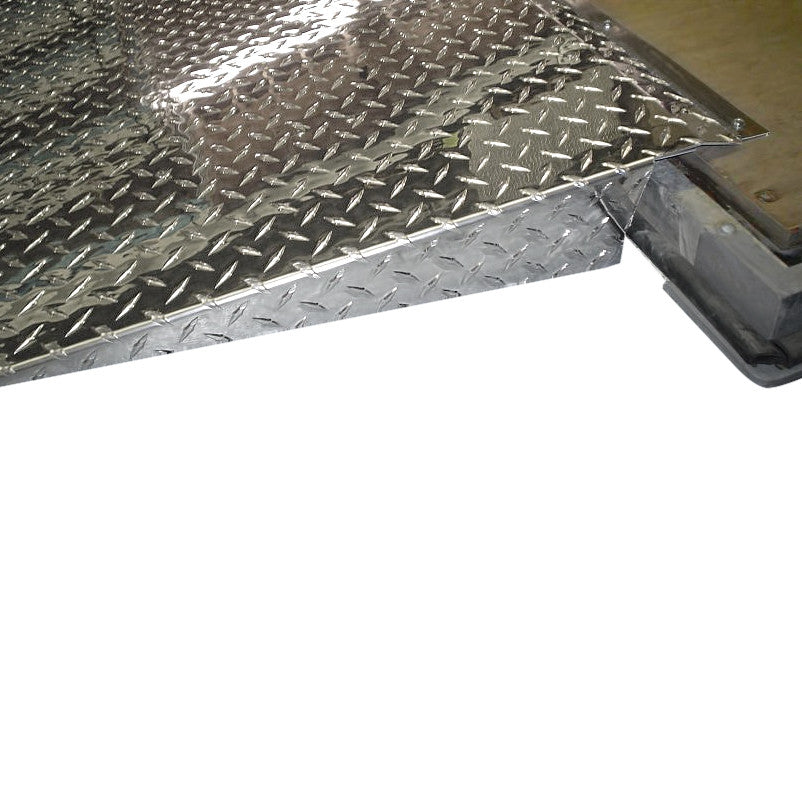

Please note: These diamond plate ramp extensions are designed for air filled tires NOT hard rubber narrow caster type wheels. We have designed a ramp made from smooth aluminum that is more suited for these applications. Please choose the smooth aluminum version based on your application.

Features and Specifications:

  • Items Normally Made within 3-5 Business Days
  • Item Number: 934 (Pair 36" Diamond Plate)
  • Item Number: 934-1 (Single 36" Diamond Plate)
  • Item Number: 934-68 (Pair 34" Diamond Plate)
  • Item Number: 934-68-1 (Single 34" Diamond Plate)

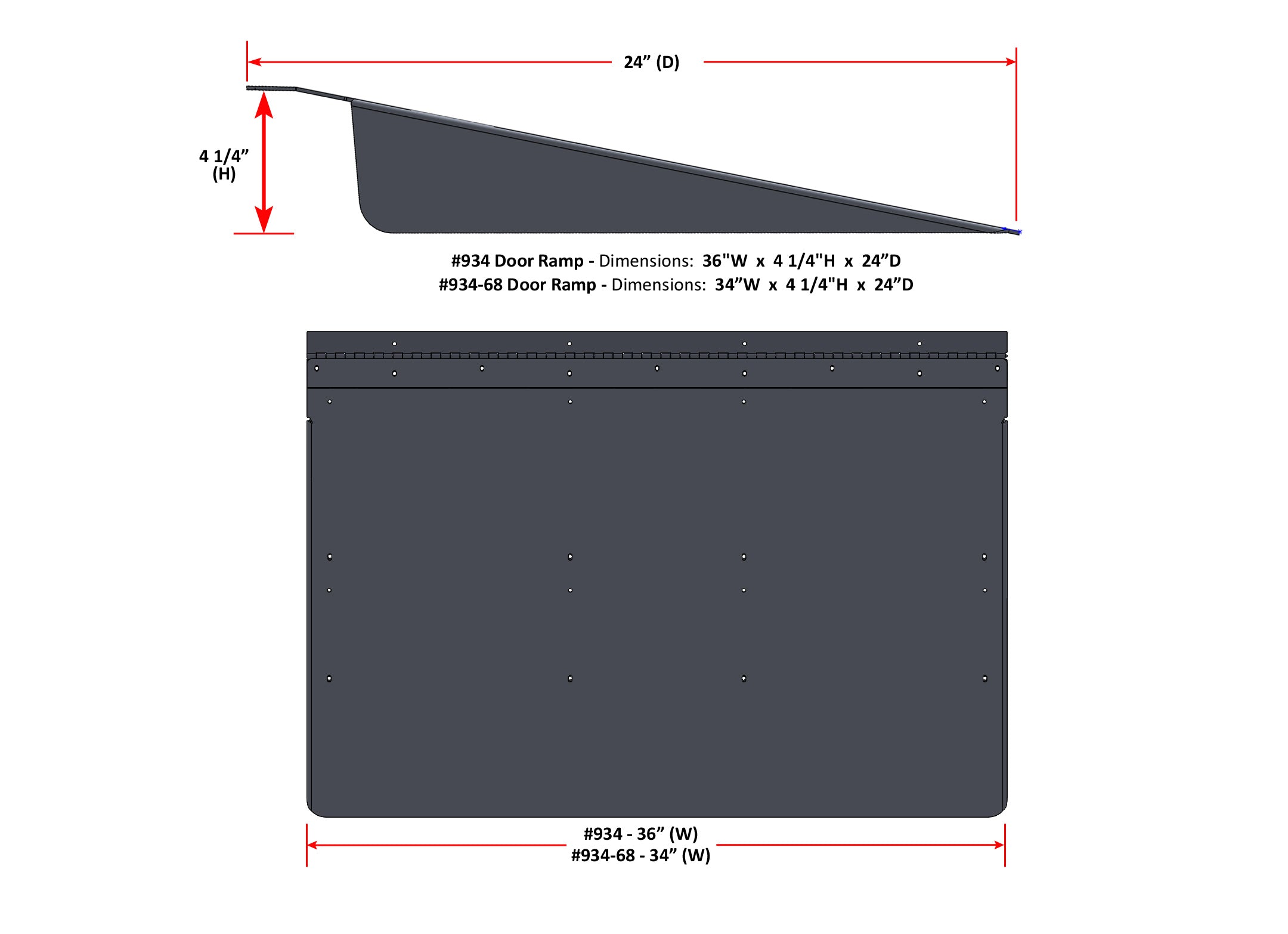

- Dimensions: 36"L x 4 1/4"H x 24"D (Each) and 72"L x 4 1/4"H x 24"D (When installed as a pair)
- Dimensions: 34"L x 4 1/4"H x 24"D (Each) and 68"L x 4 1/4"H x 24"D (When installed as a pair)

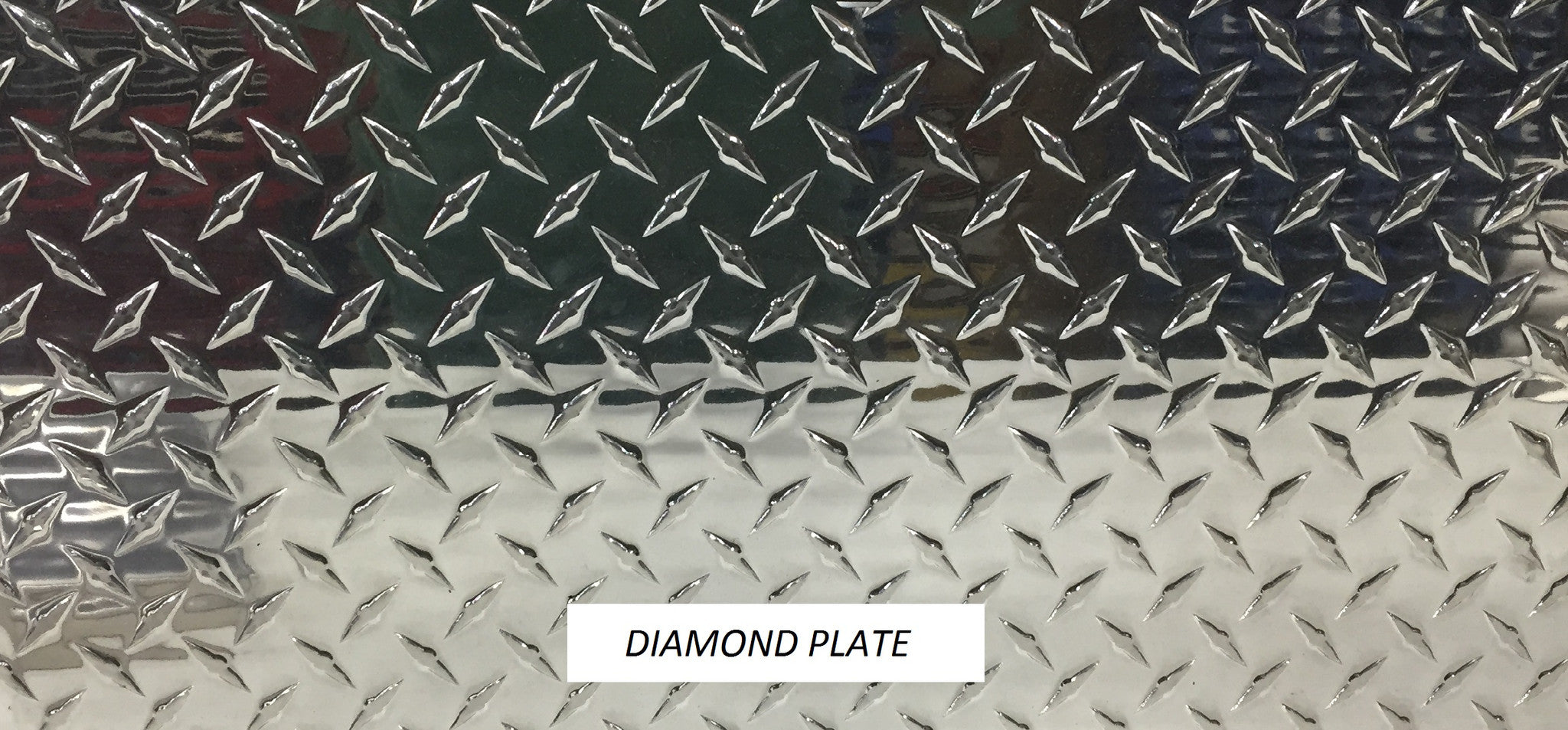

- Material: .100 Diamond Plate aluminum top with .090 smooth aluminum braces

  • Item Number: 934-S (Pair 36" Smooth Aluminum)
  • Item Number: 934-1-S (Single 36" Smooth Aluminum)
  • Item Number: 934-68-S (Pair 34" Smooth Aluminum)
  • Item Number: 934-68-1-S (Single 34" Smooth Aluminum)
- Dimensions: 36"L x 4 1/4"H x 24"D (Each) and 72"L x 4 1/4"H x 24"D (When installed as a pair)
- Dimensions: 34"L x 4 1/4"H x 24"D (Each) and 68"L x 4 1/4"H x 24"D (When installed as a pair)

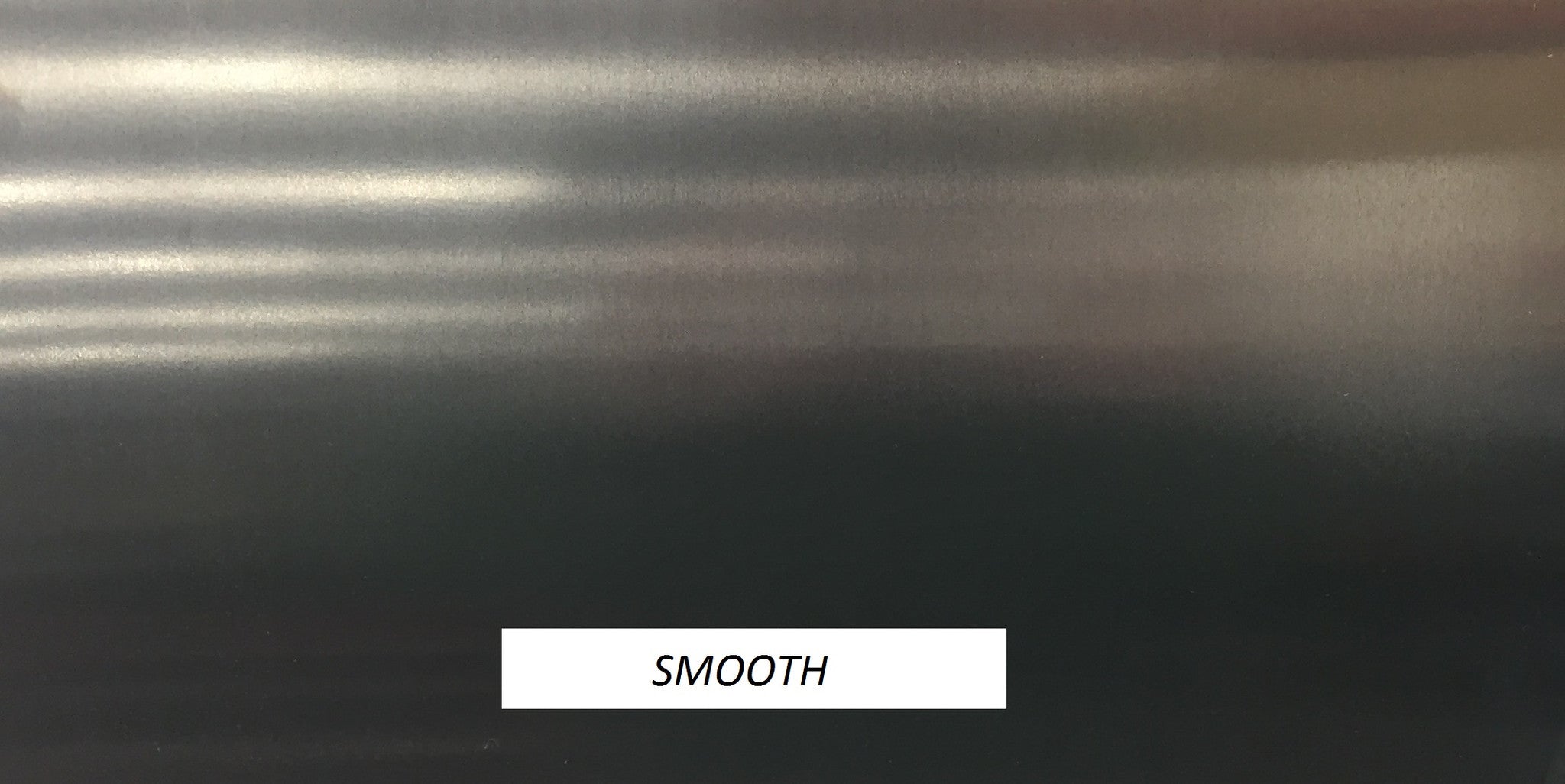

- Material: .090 Smooth aluminum top with .090 smooth aluminum braces

    • Weight: Single Ramp - Approximately 16 lbs, Pair of Ramps - Approximately 32 lbs
    • Ships Fully Assembled
    • Heavy Duty Construction with High Strength MIG Welds
    • Stainless Steel Rivets Used to Assemble
    • High Strength Aluminum Piano Hinges
    • Mounting Hardware Included:  2” Phillips Pan Head Self-Drilling Tek Screws
    • Shipping Method: Ground (UPS)

    MADE IN THE USA
